Introduction
In coal mining, metallurgy, building materials, and bulk material processing industries, scraper conveyors serve as the core continuous conveying equipment. They undertake long-distance, high-load, and uninterrupted material transportation tasks, and their operational stability directly determines the overall production efficiency of the entire factory and mine production line. However, affected by harsh working conditions such as underground dust, humid corrosion, material impact, and long-term overload operation, scraper chain faults including breakage, slippage, and stalling occur frequently in actual production. According to industrial statistics, chain failure accounts for nearly one-third of all scraper conveyor equipment faults, becoming the biggest hidden danger restricting safe and efficient production.
Different from ordinary mechanical wear faults, sudden broken chain and chain slip failures are extremely destructive. Without professional safety protection devices in place, abnormal chain operation will not only cause material accumulation and production line shutdown but also trigger chain whipping, groove extrusion, and even permanent damage to the conveyor head and tail components, bringing huge economic losses and potential safety risks. This is why a professional scraper conveyor broken chain protector has become a standard essential safety configuration for modern industrial conveying systems.
Main Equipment Damage Caused By Scraper Chain Abnormality
Most production managers ignore the subtle hidden dangers of chain operation in daily production and only perform maintenance after obvious equipment failures occur. In fact, all major scraper conveyor damage is accumulated from minor chain abnormalities. Long-term unmonitored chain slip, speed deviation, and fatigue operation will gradually aggravate equipment loss, and eventually lead to destructive faults.
First, long-term chain slippage will cause asynchronous operation between the driving sprocket and the chain. Frequent friction and dislocation will wear the sprocket teeth and chain links seriously, reducing the overall structural strength of the conveying system. In severe cases, tooth jumping and chain jamming will occur instantly, resulting in sudden stalling of the entire conveyor. Second, once the chain breaks under high load, the residual tension and inertial operation of the driving device will make the broken chain swing violently inside the equipment, directly impacting the conveyor groove, baffle, and driving motor components, causing irreversible mechanical damage.
In addition, chain failure will lead to forced shutdown of the production line. Manual cleaning of accumulated materials, equipment maintenance, and chain replacement will consume a lot of labor and time costs, seriously affecting production progress and bringing huge invisible losses to industrial enterprises. Therefore, real-time monitoring and active protection of chain operation status are the key to reducing equipment failure rates and extending the service life of scraper conveyors.
Working Principle Of Scraper Conveyor Broken Chain Protector

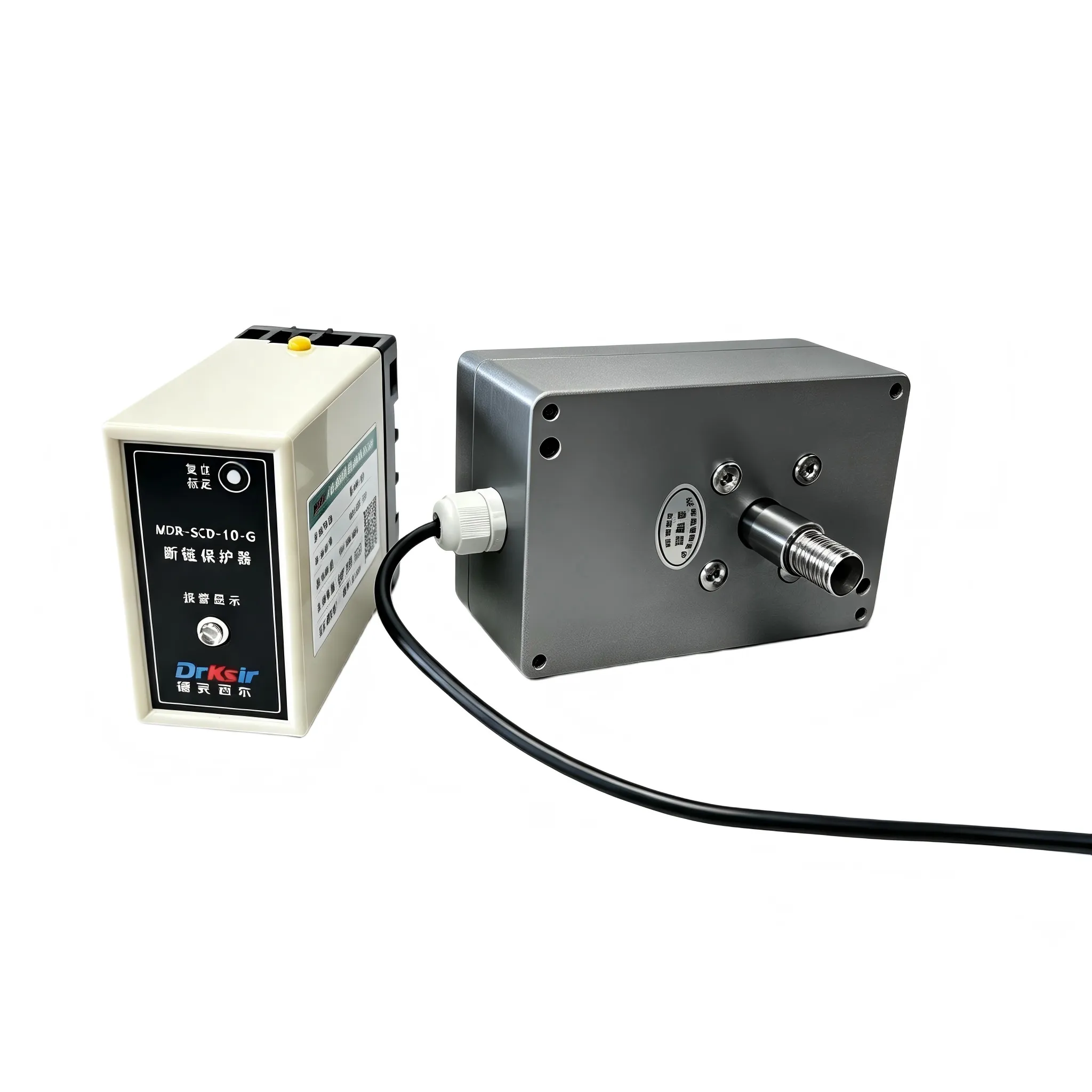

The scraper conveyor broken chain protector is an industrial-grade dedicated safety monitoring device tailored for the high-intensity and harsh working conditions of scraper conveying equipment. Different from traditional single-function alarm devices, it adopts high-precision induction speed detection technology, realizing full-cycle real-time monitoring of chain operating frequency, running speed, and operating stability, forming a complete set of active early warning and emergency protection mechanisms.
The device is installed at the tail shaft and sprocket operating position of the scraper conveyor. The built-in high-sensitivity sensor continuously collects stable pulse speed signals during normal equipment operation, and the industrial control chip records and stores the standard operating parameters of the equipment. When the chain breaks, slips, stalls, or runs at overspeed/underspeed due to material blockage, equipment aging, or overload, the feedback pulse signal will deviate from the standard value or even interrupt instantly.
The core control chip can complete fault judgment within milliseconds. Once abnormal data is identified, it will immediately trigger the relay output signal, linkage with the on-site PLC and control system to realize sound and light alarm prompt and emergency shutdown. It effectively cuts off the continuous operation of faulty equipment, prevents the expansion of minor faults into major equipment damage, and realizes whole-process safety protection for scraper conveyor operation.
Core Equipment Protection Functions & Technical Advantages
The core value of the scraper conveyor broken chain protector is to change the traditional passive maintenance mode of “repair after failure” and realize active prevention and precise protection of equipment faults. Its multiple industrial-grade advantages can fully adapt to the complex and harsh working environment of mines and factories, providing stable and reliable safety guarantees for long-term operation of equipment.
First, high-precision and fast response protection avoids equipment secondary damage. The device features ultra-fast fault judgment speed, which can capture subtle speed changes that cannot be identified by human eyes and ordinary detection devices. It can respond and shut down in the first place when the chain is abnormal, avoiding violent friction and impact between faulty chain and equipment components, and greatly reducing the wear and damage of conveyor grooves, sprockets, and transmission components.
Second, IP65 full protection design adapts to harsh industrial scenes. Faced with high dust, humidity, vibration, and material impact in mine and workshop environments, the equipment has excellent dustproof, waterproof, and anti-vibration capabilities. It can maintain stable detection accuracy and will not cause false alarms or missed detections due to environmental interference, ensuring long-term uninterrupted and stable operation of the protection system.
Third, strong anti-interference performance and high compatibility. Equipped with professional industrial-grade chips and anti-electromagnetic interference circuits, it can effectively filter various electromagnetic signal interferences generated by on-site motors and electrical equipment. It supports wide voltage adaptation and can be seamlessly connected with various industrial control systems and PLC equipment, suitable for all types of new and old scraper conveyor models, with strong universality.
Fourth, it reduces enterprise operation and maintenance costs. Real-time online monitoring avoids frequent manual inspection omissions, accurately eliminates potential faults in advance, greatly reduces equipment failure shutdown times and component replacement frequency, effectively saves labor maintenance costs and equipment loss costs, and improves the overall operating efficiency of the production line.
Application Scenarios & Industrial Value

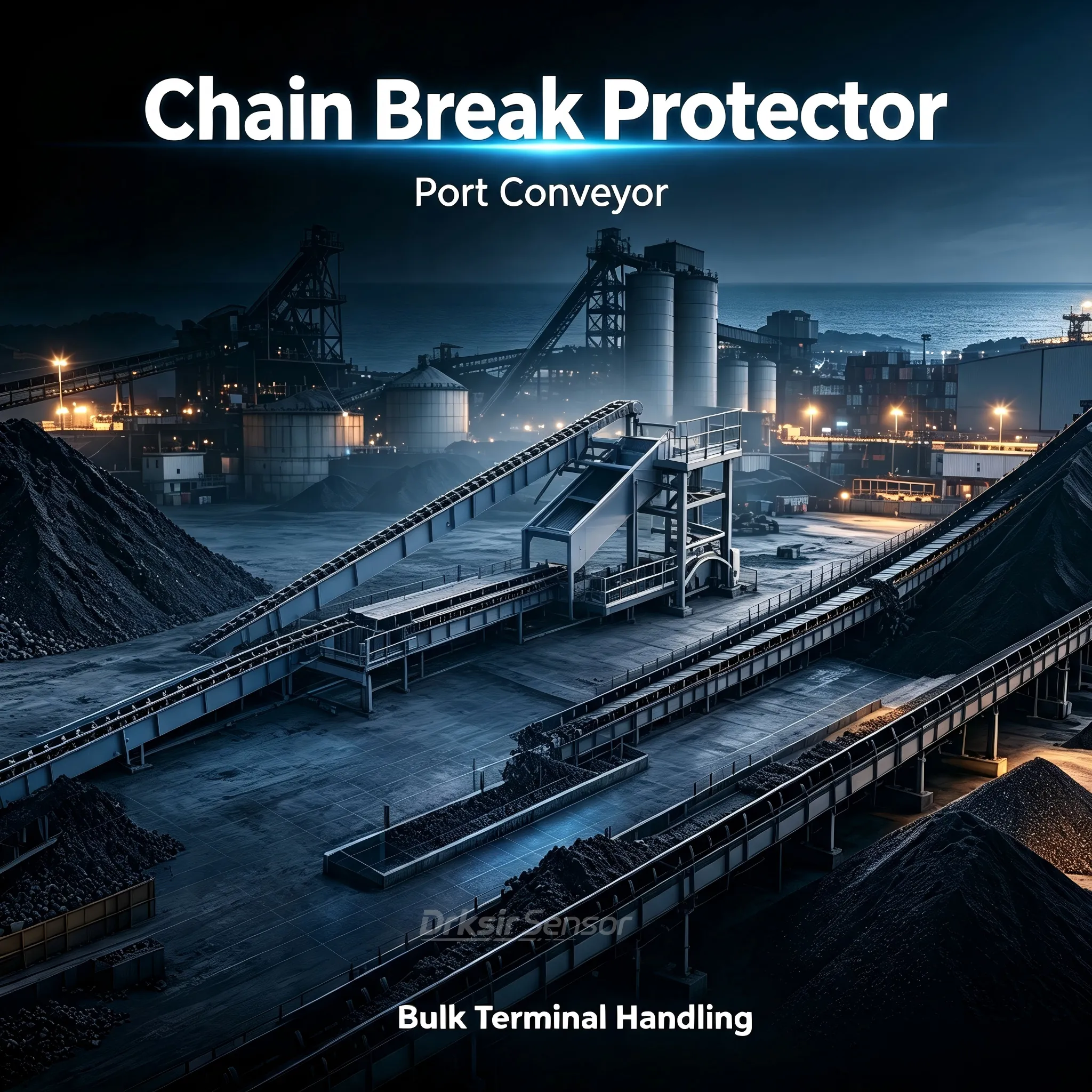

The scraper conveyor broken chain protector is widely applicable to various heavy-duty scraper conveying equipment in coal mines, thermal power plants, cement building materials, chemical industry, port bulk cargo transportation, and other industries. It is specially optimized for the high-load and continuous operation characteristics of scraper machines, solving the industry pain points of frequent chain faults and difficult real-time monitoring of traditional conveying equipment.
For industrial enterprises, equipping with a professional broken chain protector is not only a basic measure to meet production safety specifications but also an important means to optimize production benefits. It effectively avoids major safety accidents and equipment damage losses caused by chain failure, ensures the continuity and stability of production, and helps enterprises achieve safe, efficient, and low-consumption intelligent production operation.
Conclusion
As the key safety barrier of scraper conveyor equipment, the broken chain protector plays an irreplaceable role in preventing chain failure, avoiding equipment damage, reducing downtime losses, and optimizing industrial production safety. Facing increasingly strict industrial safety production standards and high-efficiency production demands, equipping with high-precision, high-stability industrial-grade chain protection devices has become an inevitable trend in the development of modern bulk material conveying industries.
We are a professional manufacturer of industrial safety monitoring devices with mature production technology, strict quality inspection system, and rich on-site application experience. All our scraper conveyor broken chain protectors adopt industrial-grade configuration, stable performance, and cost-effective pricing. We support customized solutions for different working conditions and equipment models. If you have equipment matching, technical parameter consultation, and bulk procurement demands, welcome to contact us for professional one-stop service and competitive factory quotation.

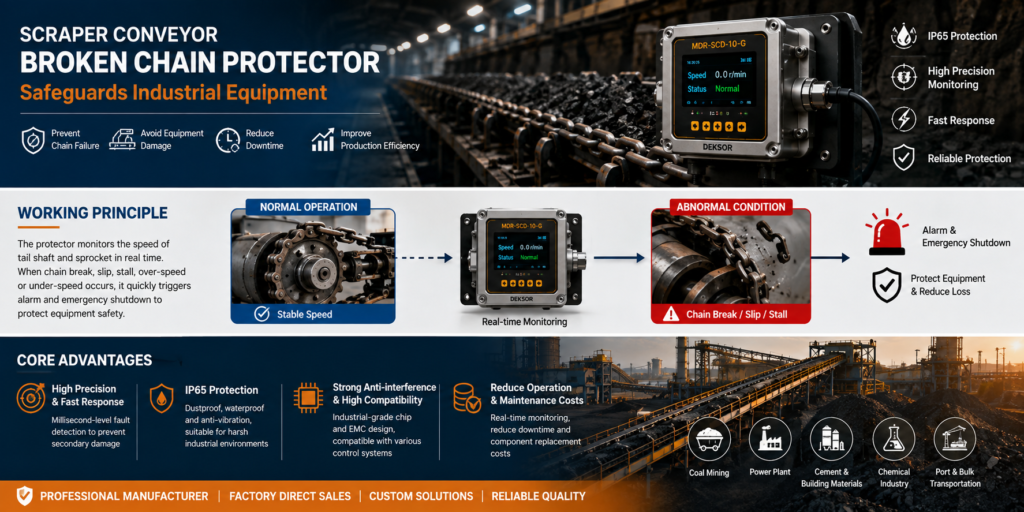

How Scraper Conveyor Broken Chain Protector Safeguards Industrial Equipment
